Dual Socket E (LGA-4677)
5th/4th Gen Intel® Xeon® Scalable processors
記憶體容量
32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
記憶體種類
4800/5600MHz ECC DDR5 RDIMM
內建裝置
晶片組
Intel® C741 Chipset
SATA
SATA3 (6 Gbps) ports, RAID 0/1/5/10 support
網路
Dual Port 10GbE from Intel X550 or Broadcom BCM57416
IPMI 智慧平台管理介面
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
輸入 / 輸出
SATA
8 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)
2 USB 3.0 ports (header)
Video
1 VGA Connector
尺寸與重量
高度
3.5"(88.9mm)
寬度
17.2"(437mm)
深度
29.9"(760mm)
重量
Net Weight: 40 lbs (18.2 kg)
Gross Weight: 66 lbs (30 kg)
外觀型態

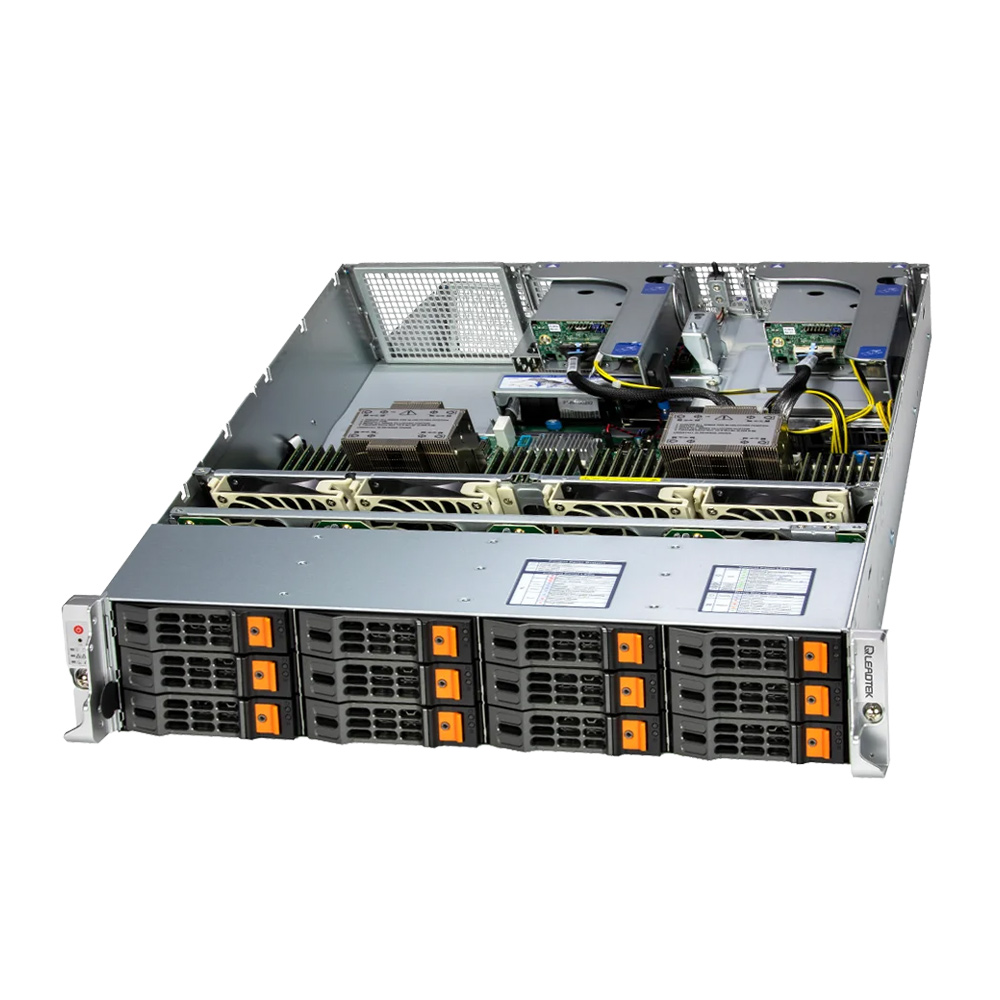

2U Rackmountable with Rail kit
擴充插槽
PCI-Express
4 PCI-E 5.0 x16 slots
1 AIOM/OCP 3.0 NIC slot
磁碟槽 / 存儲

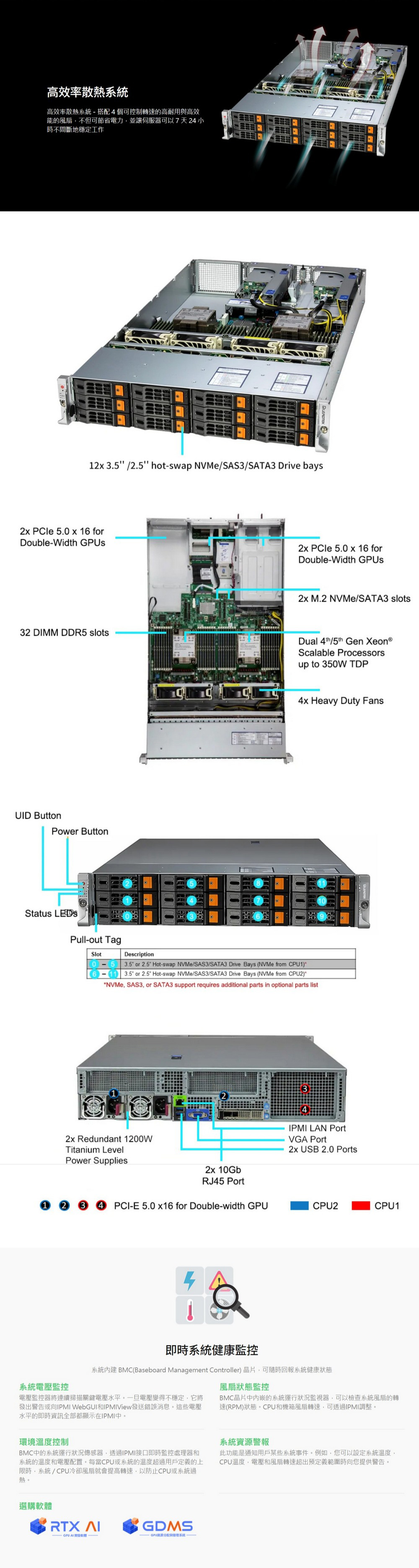

12x 3.5”/2.5” hot-swap NVMe/SATA/SAS drive bays
系統散熱
電源供應器
2x 1200W 1U Redundant Power Supplies with PMBus
(Optional 2000W Redundant power supply for 4pcs 250W GPU)
(Optional 2600W Redundant power supply for 4pcs 300W GPU)
